Product Spotlight: Audison SR 5.600 Five-Channel Car Audio Amplifier

By Mitchell Schaffer

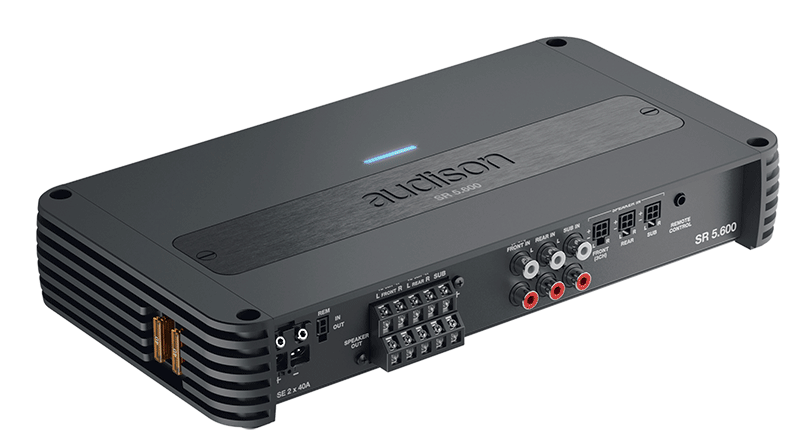

Audison SR 5.600If you live in the Lehighton area and are looking for a five-channel car audio amplifier, drop by Mobile Edge and ask about the Audison SR 5.600. This compact amplifier can power an entire audio system, including the front and rear speakers and a subwoofer. The amp uses a new switching design called Audison D-Class to deliver good sound quality while maintaining impressive efficiency.

Impressive Power in a Compact Package

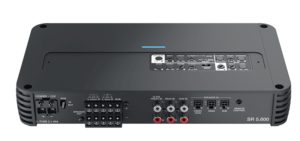

Audison SR 5.600The Audison SR 5.600 is rated to produce 75 watts of power from the four main channels and 330 watts from the subwoofer channel when connected to 4-ohm loads. When loaded with 2-ohm speakers, the power output increases to 115 and 550 watts, respectively. Audison rates the amp as having a signal-to-noise ratio of 84 dBA for the main channels and 75 for the subwoofer channel. Frequency response is specified as 10 Hz to 35 kHz for the mains and 10 to 500 Hz for the subwoofer with a tolerance of -3 dB.

The amp is based on an extruded aluminum chassis for excellent heat management. Audison has placed all the connections along one edge to make it easy for our team to install the amp. The controls for the crossovers and sensitivity settings are underneath a removable panel on the top plate. Audison includes a selectable infrasonic filter for the subwoofer channel (-24 dB/octave at 25 Hz) to protect woofers. The amp can be switched into a three-channel mode that produces 230 watts per channel with the four main outputs bridged, along with the 550 watts from the subwoofer channel. Finally, the amp can be upgraded with the optional VCR-S1 remote subwoofer level control if you want to adjust the bass output from the front seat.

The Perfect Upgrade for Your Factory Radio

Audison knows that many vehicles can’t be upgraded with a new source unit. They’ve included their Universal Speakers Simulator (USS) circuit to make the installation process easier on vehicles requiring load resistors to enable the speaker outputs. The SR 5.600 can accept up to 20 volts of signal on the speaker-level inputs so that you won’t need a line-level adapter. The Automatic Remote Turn-On/Off (ART) circuit brings the amp to life as soon as you turn on the factory radio.

Upgrade Your Car Stereo with the Audison SR 5.600 Amplifier

If you’re in the market for a powerful yet compact amplifier that can bring your music to life, drop by Mobile Edge in Lehighton as ask about the Audison SR 5.600. A member of the team would be happy to design an audio system upgrade for you. If you can’t visit our store, give us a call or click the red button below to send our team an e-mail.
